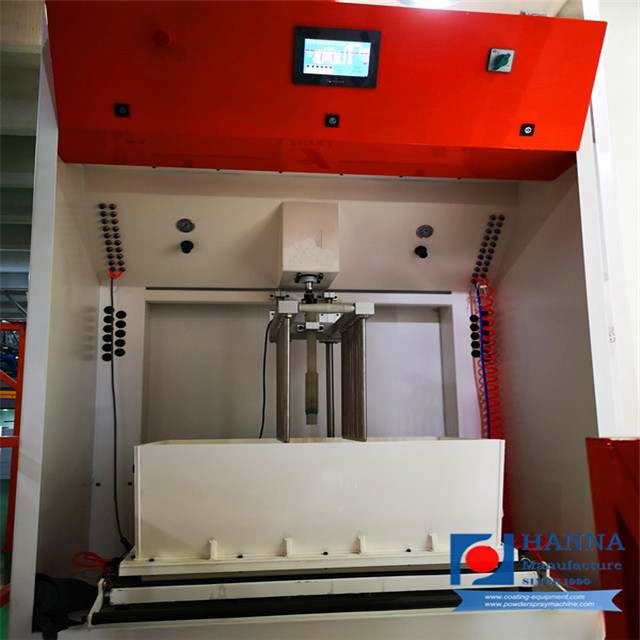

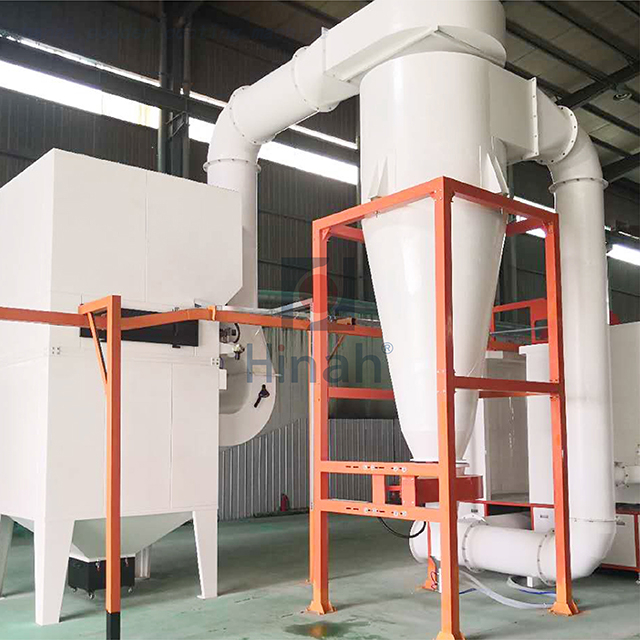

Fast Color Change Booth

No dust spill out, Minimum powder waste.
Quick color change (10-15 minutes automated color change), Multi-color change design.
Powder Recovery Efficiency high as 99.2%

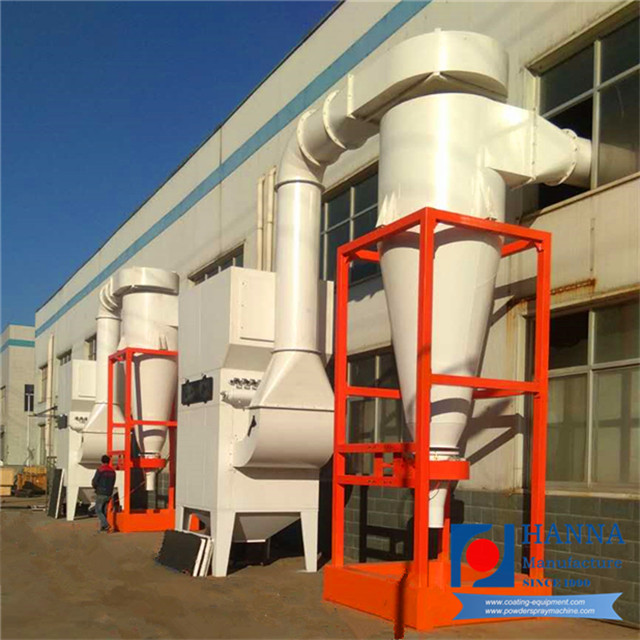

  • Big Cyclone Fast Automatic Color Change
  • Hanna
Availability:
Quantity:

Hanna automatic fast color change features:

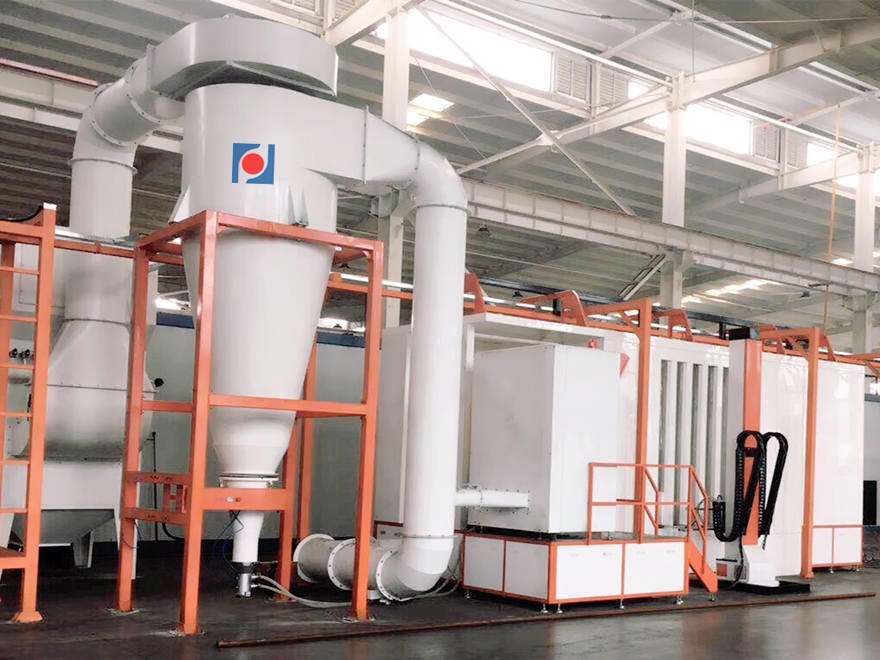

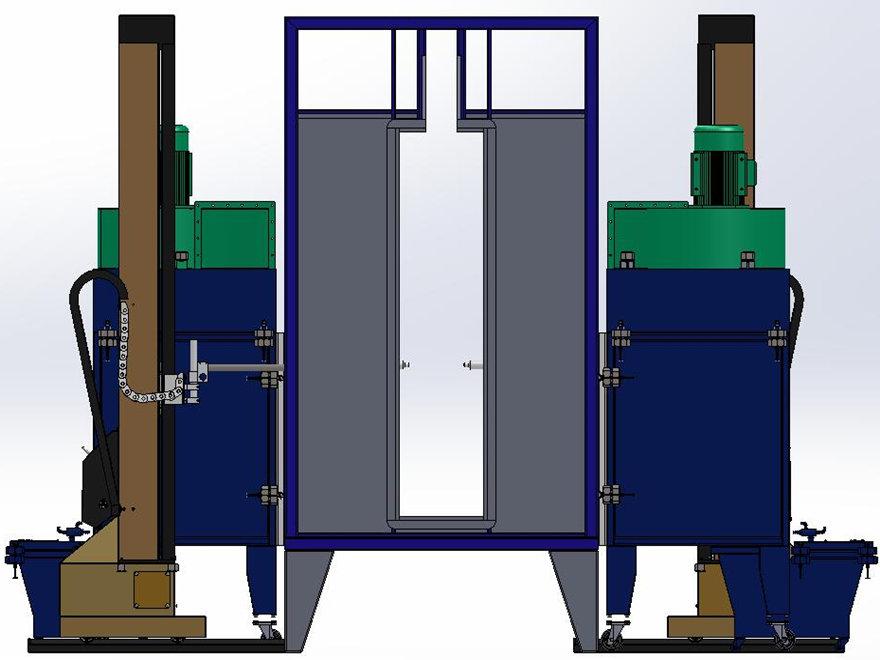

Fast Color Change Booth

1.No dust spillover, reduce powder waste.

2, Quick color change (10-15 minutes automatic color change), Multi-color change.

3, Powder recovery rate as high as 99.2%

4, Fifth generation of intelligent spray gun, the workpiece groove has no bottoming phenomenon.

5, Full consider the need for color change, easy to clean,Save labor time.

6, Key mechanical parts and electrical components of the equipment adopt the world's top brand products to ensure reliable operation and durability.

7, Beautiful appearance, fine workmanship.

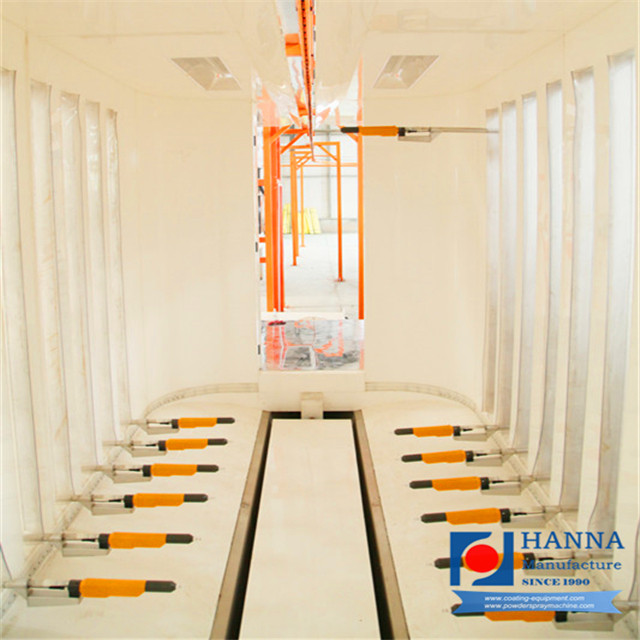

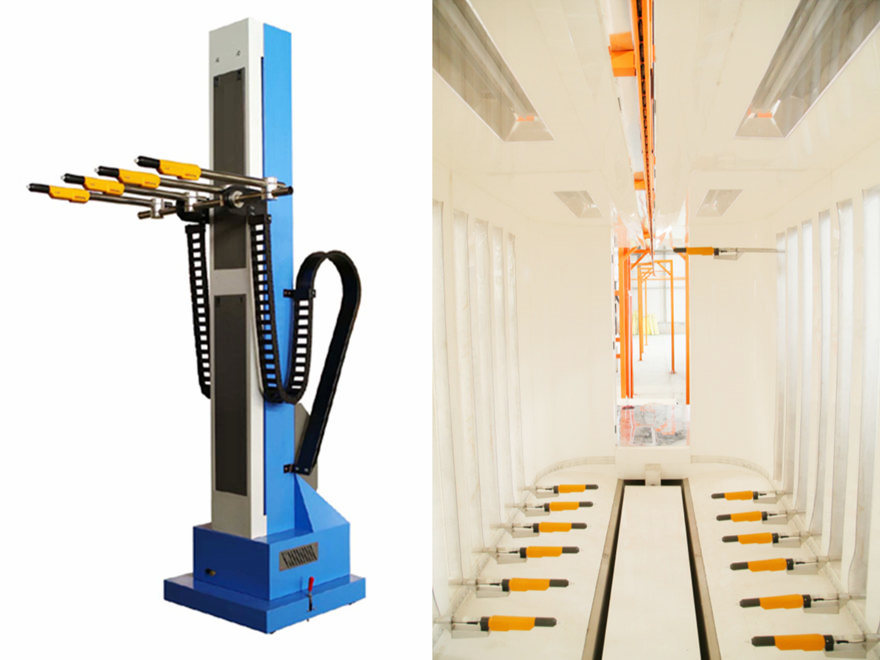

Groove design at the bottom of spay booth


Groove design at the bottom of spay booth
Working principle:
Part of the electrostatic powder missing the target will fall by gravity, and drive to move by the micro-negative pressure at the groove, then directly move into the filter recovery unit. The spray room floor can be able to avoid powder accumulation and easy to clean.

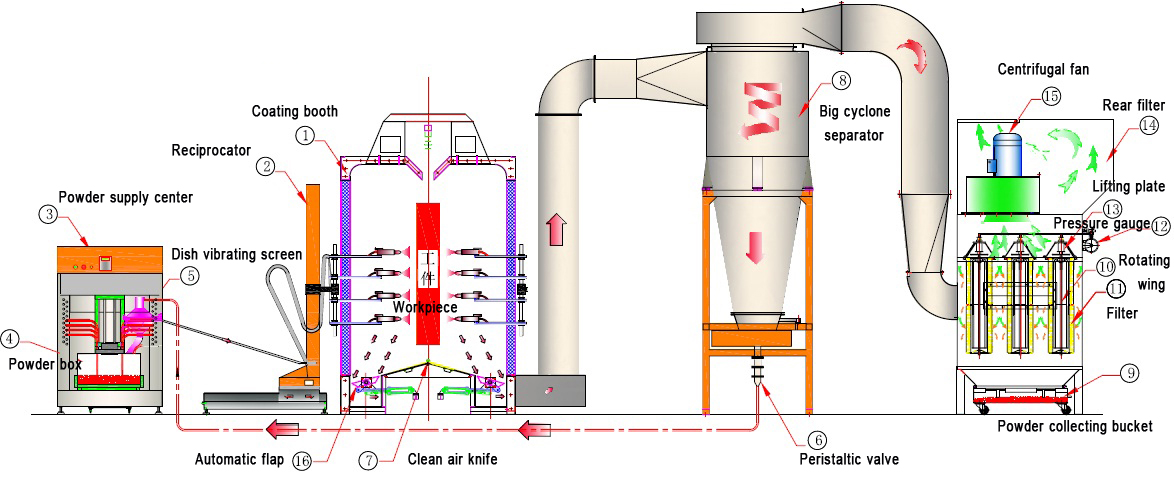

Fast Color Change Booth Working principle


Working principle:

The powder is automatically transported from the powder supply center to the electrostatic spray gun under the action of air power source;The electrostatic powder is partially sprayed onto the surface of the workpiece; Part of the powder flows through the large cyclone recovery machine and secondary recovery unit; A small amount remains in the inner wall of the spray booth. Part of the powder passes through the air suction cyclone, through primary recovery unit and a bottom vibrating screen, then returned to the powder supply center under the action of the powder recovery pump.  Part of the powder is rotated to the top of the large cyclone and sent to the secondary recovery unit, then through the rotary wing filter and left in the powder collecting bucket.

Hanna powder coating supply system:


Fast Color Change Booth

1,A variety of powders and spray guns to meet all your needs:

With a hopper from 50L to 200L, it can easily match up to 32 guns.

2,Ideal fluidization effect in powder preparation stage:

the high quality fluidized bucket bed distributes compressed air throughout the surface of the bucket for ideal powder transfer.

3,Simple integration into each system:

The new powder supply, recycled powder and air transfer combination offer the possibility to integrate equipment into any one system.

4,Integrated adjustable sensor:

Powder level sensor - adjust height - activate alarm and automatic new powder supply system when powder level is too low

5,Vibration platform for difficult to fluidize powder:

Powder hopper with its own vibration base helps fluidize for powders that are difficult to spray

6,The powder hopper trolley is easy to move:

Powder hoppers with rugged strollers can be easily moved to wherever you need.
