Liquid Painting Line

Optional accessories

Different loads and pace of overhead conveyor.
Additional phases in the washing tunnel.
Painting booth with water veil filtration.
Additional painting booths.
Electric and mechanical assembly.
Diesel oil burner.
  • Liquid Painting Line


Standard step spray line includes :


Liquid Painting Line  6-800-800

- Power conveyor with automatic feed.
- Automatic multiphase washing tunnel.
- Drying oven.
- 1st painting booth with dry filtration.
- 1st flash off tunnel.
- 2nd painting booth with dry filtration.
- 2nd flash off tunnel.
- Curing tunnel.

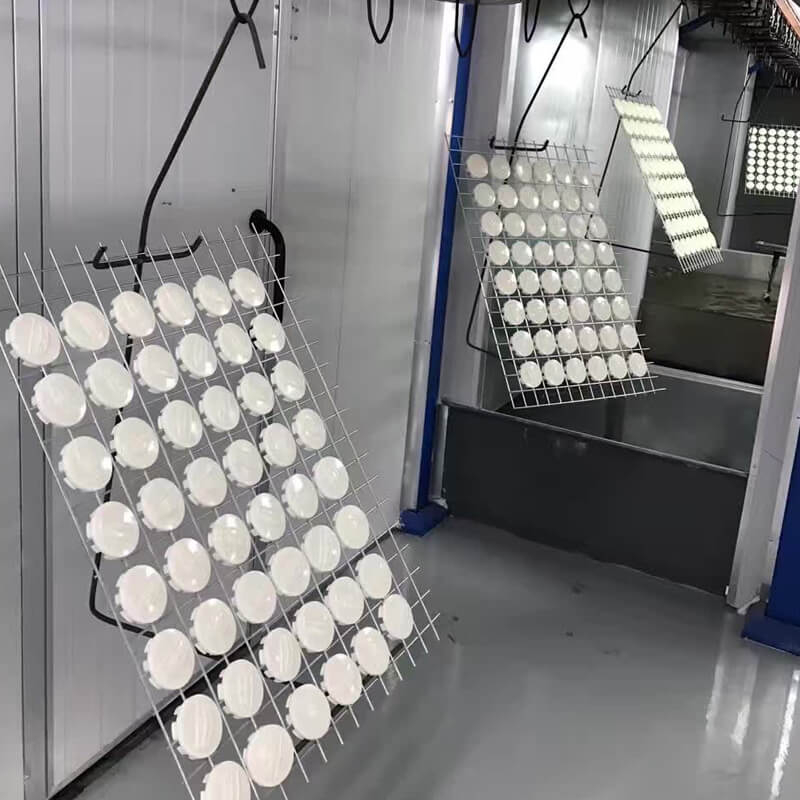

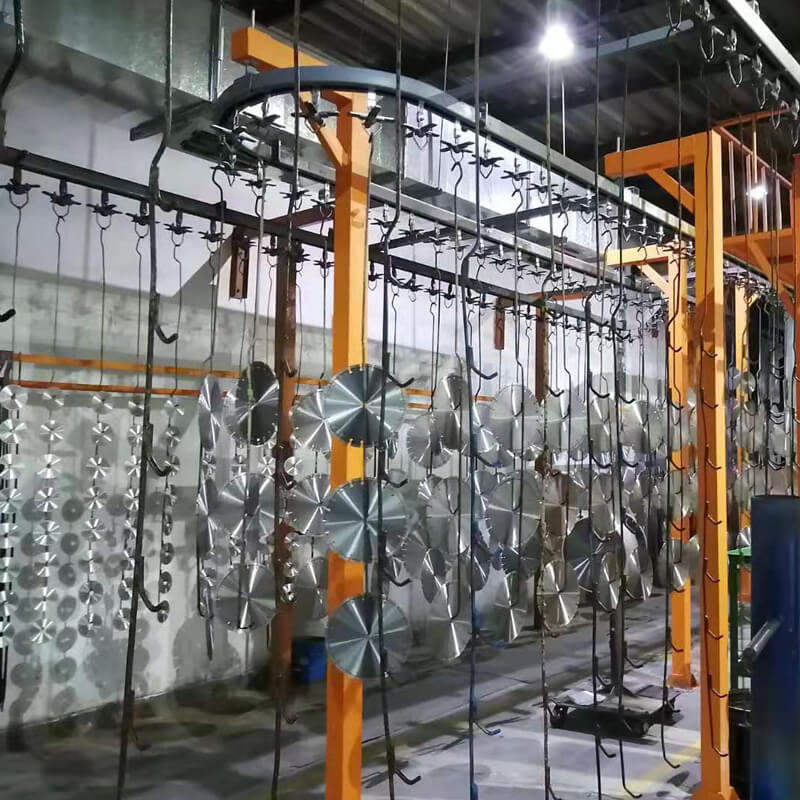

2-800-800  1-800-800

4-800-800  3-800-800

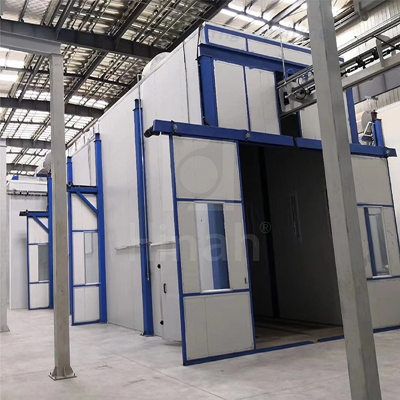

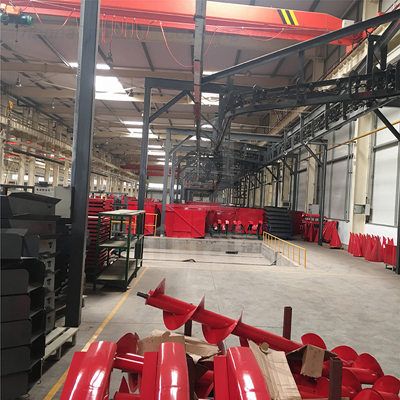

新图 (2)_副本  新图 (3)_副本

Construction : overhead conveyor, drying tunnel, curing oven and painting booths, made of galvanized steel sheet; washing tunnel made of stainless steel; frame made of painted steel.

Oven insulation made of mineral wool, thickness 80mm, density 100 kg/m3, max. temperature 100°C.

Liquid Painting Line

Methane or LPG burners.

Supplied as assembly kit.

Technical data and dimensions are given as indication and can be changed according to specific customer’s requirements.
