Manual sprinkling chamber Suppliers

Views: 41     Author: Site Editor     Publish Time: 2018-05-25      Origin: Site

Inquire

Manual Powder Coating Machine:

The manual spraying line includes three parts: suspension conveying track, manual spraying room and curing furnace.

Manual spray working process:

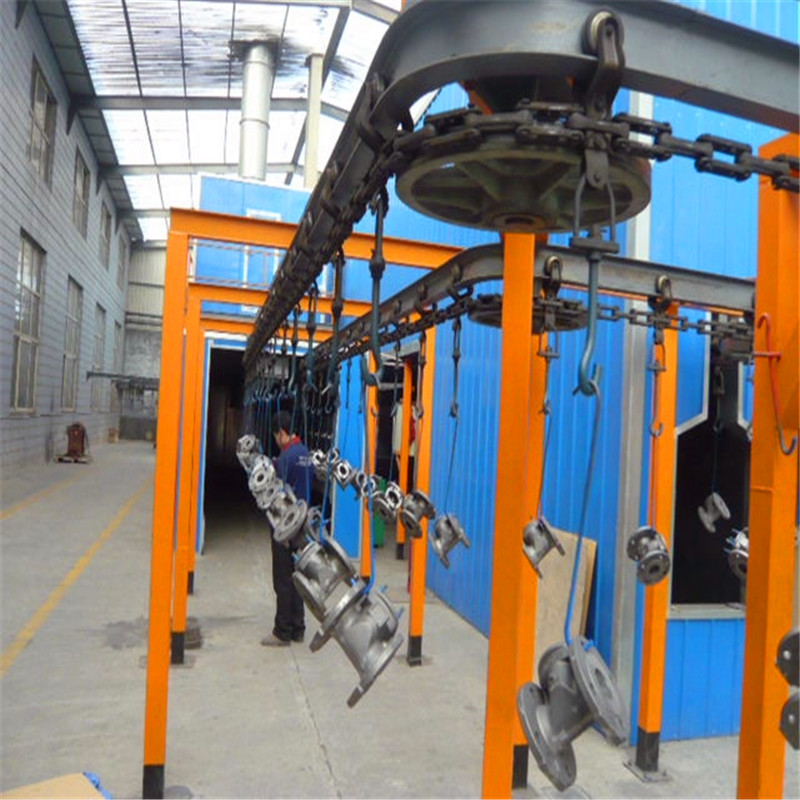

1. Suspension conveyer track: the workpiece is hung in the upper part area by the worker after the control room controls the speed of the suspension conveying system with the worker spraying.The workpiece is then sent to the curing oven to be bake and unloaded to the unloading area.

2.spray room: the workpiece is sent into the spray room through the suspension conveying system, the powder is transported to the spray gun through the portable powder spraying machine, and the worker walks up the steps and picks up the spray gun and starts to do manual spraying at the station.The advantage of manual spraying is that workers can control the spray direction according to their own experience and can spray without dead angle.A small fraction of the powder left after spraying is pushed by the workers into the grooves.The powder is inhaled by the powder recovery system under the action of the ventilator.The filter filters the impurities in the powder, and the powder falls and is scraped off by the worker and used again.The powder recovery system is removable, and if you need to change colors, simply replace the filter and Clean the inner wall or replace a powder recovery system.

3.curing oven: after spraying, the workpiece is transported to the curing oven heated to 180-200 ℃ for 15 to 20 minutes to heat the powder hot melt to solidify the film.Heated fuels can be coal, electricity, natural gas, diesel, biological particles, etc.We can customize the heat source system and curing oven according to your needs.

Our Automatic Electrostatic Powder Spraying Line includes:
1. Electrostatic Powder Coating Machine
2. Powder Coating Booth, Powder Spray Room, Multi-function Spray Room, Fast Automatic Color Change Powder Spraying Room, Electrostatic Powder Spraying Gun, Reciprocator, PLC Contral System
3. Pretreatment Equipment
4. Powder Recovery Equipment, Large Cyclone Powder Recovery System
5. Curing Oven, Hot Air Furnace, Biological Granule Combustion Machine, Gas Burner, Electric Heating Oven
6. Powder Coating System Transport Components, Automatic Elevating Equipment, Chain Suspension Conveying Equipment
We also manufacture Manual Powder Coating Guns and Machines, Paint Spraying Line, Spray Paint Room, Telescopic Spray Paint Room, Paint Spray Gun, Manual Paint Spray Guns and Machines, Epoxy Powder, Polyester Powder, Nylon Powder. And through to CE, ISO9001 standards.
Advantages:
1. Fast color change, high efficiency of powder recovery as high as 99.2%.
2. Fast automatic powder/color change time, about 15 mins.
3. Non-stick powder recovery.
Application:
It is widely used in automotive, motorcycle, home appliances, electrical, mechanical, instrument and meter, radiator, anti-theft door, pipeline, valve, furniture, kitchenware, building materials, shelves, lamps, fire extinguishers, grain and oil machinery, refueling machine and many other fields.


Application

Product After Sale Management System:
1.Training operation and maintenance personnel in organization;
2.Tracking understand and maintenance of mechanical equipment performance and use effect;
3.Assist customers to manage the production process and select the specification of process management;
4.Providing vulnerable parts at the factory price;
5.Lifetime after-sales service;
6.If equipment failure, in 24 hours (provincial) to solve the problem, and do a good record;
7.Three year warranty, lifelong repair.
Quick Inquiry:
If you want to customize any powder coating line, pls tell us the following specifications:
1. The material of your workpiece.
2. The size of your workpiece.
3. The weight of your workpiece.
4. The output of your workpiece (one day=8hours, one month=30days).
5. The heating power you prefer: electric, gas, diesel, or coal.
6. The size of your factory(length, width and height).

Packaging & Shipping
We deliver the goods to any ports in China,or deliver to the place as required
can ship within 30 days .
Packing: proper packing suitable for deliver
We have professional overseas engineers to install and debug the machine.
Welcome you to visit our factory for technical communication.
