Powder coating is an efficient and environmentally friendly coating process, and the powder coating curing process is its key step. Through heating and curing, the powder coating melts and hardens into a film, which directly affects the quality and performance of the coating. Therefore, choosing a suitable powder coating curing oven is crucial to ensure the adhesion, durability and appearance of the coating. Different types of powder coating curing ovens differ in heating methods, temperature control accuracy and processing capabilities. Improper selection may lead to uneven or defective coatings, affecting production efficiency and product quality. So, how to choose a suitable curing oven?
Powder coating tunnel curing oven is a common large-scale curing equipment, usually used in batch production. Its characteristic is that the workpiece passes through a heating zone with a "tunnel" structure and moves continuously along a conveyor belt or a trolley. The temperature in the heating zone is uniform, and electric heating or gas heating can be used. Powder coating tunnel curing oven is suitable for long-term operation, high efficiency, and suitable for mass production of workpieces. Its advantages are good continuity, high degree of automation, and suitable for long-term stable operation.
The characteristic of the powder coating bridge curing ovens is that it uses a moving bridge frame to hang the workpiece on the bridge frame and pass through the heating zone. Different from the conveyor belt method of the Powder coating tunnel curing oven, the Powder coating bridge curing ovens uses the movement of the bridge frame, and the workpiece does not contact the fixed track during the heating process. This type of curing furnace is often used for the production of hanging or larger workpieces. The powder coating bridge curing oven is suitable for small and medium-sized production, which can reduce the space occupied by the workpiece and effectively avoid the surface of the workpiece from being compressed and deformed.

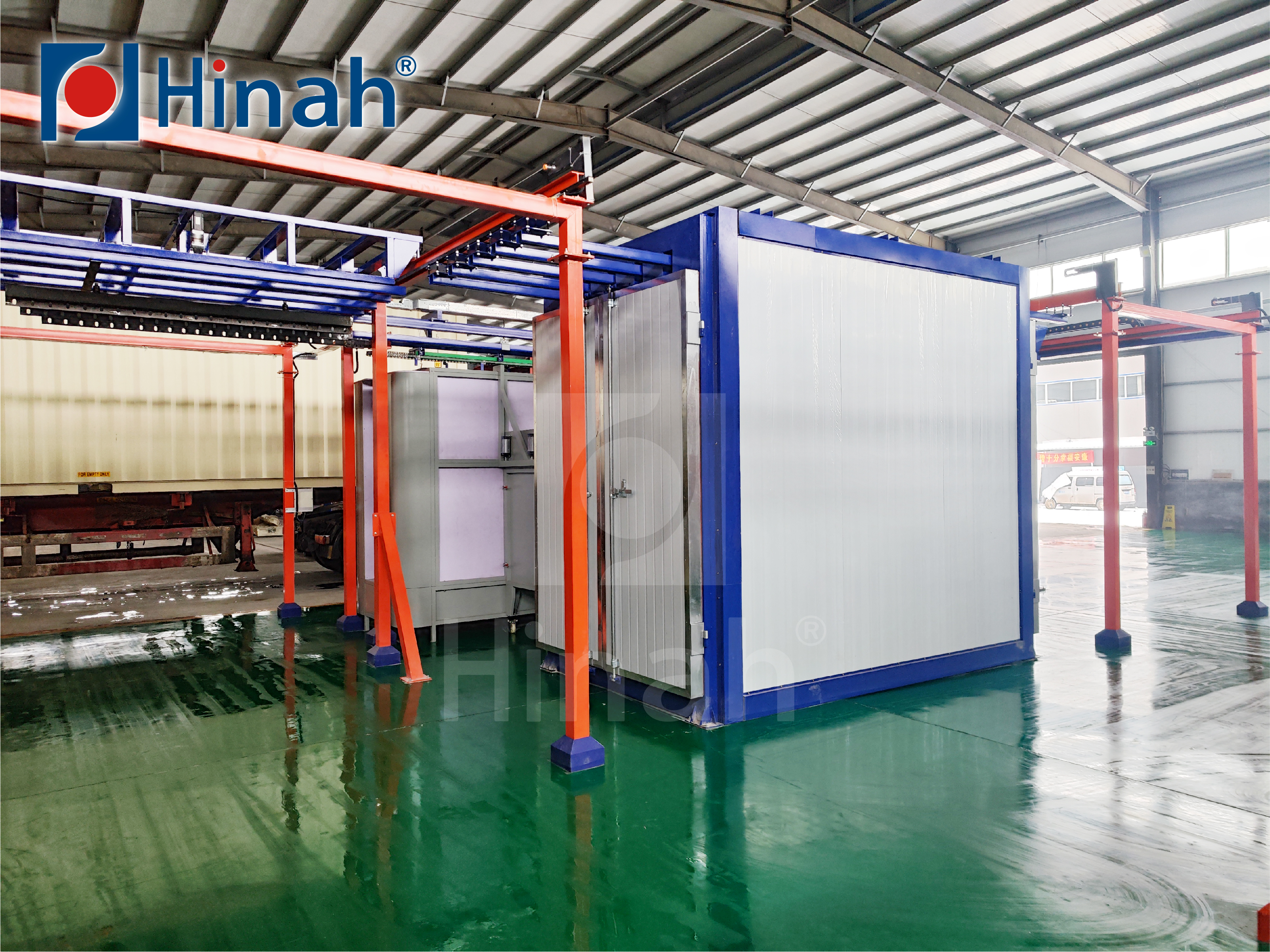

Powder coating box curing oven is usually used for smaller batch production. The workpiece is placed in the working space inside the oven and heated and cured after the oven door is closed. The heating method generally adopts electric heating, gas heating or infrared heating. The box-type curing oven has a flexible design and is suitable for small enterprises or applications with low production requirements. Its advantages are simple structure, relatively low investment cost, small footprint, and suitable for small batch production of multiple varieties.
Choosing a suitable curing powder coating oven requires comprehensive consideration of multiple factors to ensure that the equipment can meet production needs efficiently and safely. The following are several key considerations when choosing a curing oven:
Size and shape of the workpiece
Different types of curing ovens are suitable for workpieces of different sizes and shapes. Generally speaking, tunnel curing ovens are suitable for continuously produced workpieces, especially smaller parts that can be laid flat, suitable for running on production lines; bridge curing ovens are suitable for handling larger workpieces, usually used for large-scale, long-term production operations; box curing ovens are suitable for more complex workpiece shapes or smaller batch production, and can accommodate a variety of workpieces.
Production efficiency and batch
For small batch production, it is more appropriate to choose a flexible and easy-to-operate curing oven. Box curing ovens are usually suitable for small batch production, and their internal space is flexible, and the layout of the workpiece can be adjusted according to production needs.
Tunnel curing ovens are suitable for large-scale production, with a high level of automation, which can achieve continuous production and improve efficiency.
Temperature control accuracy requirements
For workpieces with strict temperature control requirements (such as high-precision parts, aerospace, medical devices, etc.), it is necessary to select a curing oven with high-temperature precision control function. Powder coating curing ovens with high temperature control accuracy are generally equipped with advanced temperature sensors and temperature control systems to ensure that the temperature fluctuates less within the specified range and avoid uneven heating of the workpiece.
Energy efficiency
When choosing a powder coating curing oven, energy consumption should be considered, especially for equipment that runs for a long time, the cost of energy consumption is more significant. Common curing oven energy sources include electricity and natural gas. Electric-driven curing ovens are usually more advantageous in terms of temperature control accuracy and stability, but natural gas-driven curing oven may be more economical in terms of cost.
Equipment maintenance and cost
The difficulty of maintaining a powder coating curing oven is related to the structure and complexity of the equipment. Tunnel curing ovens and bridge curing ovens usually require higher maintenance costs and regular maintenance by professionals, while box curing ovens are relatively simple to maintain. When choosing, consider the use environment of the equipment and the professional level of the operator.
In addition to the initial investment, operating costs are also an important decision-making factor. Electricity consumption, natural gas consumption, daily maintenance and the cost of replacing parts should all be considered comprehensively.
The automotive industry usually chooses powder coating tunnel curing ovens because they are suitable for mass production and can evenly heat different parts of the car body. It is efficient and highly automated, can handle large-sized automotive parts, and adapt to the high-speed operation of the production line.
Powder coating bridge curing ovens are often used for home appliance products, especially for coating curing of small and medium-sized home appliance products. Because it has good temperature control ability, it can ensure uniform curing of the coating, while saving energy and protecting the environment.
Powder coating box curing ovens are usually used for metal products. It is suitable for metal parts with small batches or irregular sizes. It has precise temperature control and is suitable for small and medium-sized batch production, especially in customized products.
Choosing a suitable powder coating curing oven is crucial to improving production efficiency, reducing energy consumption, and ensuring spraying quality. Therefore, when choosing, it is necessary to comprehensively consider factors such as the size, shape, production batch, temperature control accuracy, etc. of the workpiece, understand the characteristics of each curing oven, and reasonably match production needs to ensure the smooth progress of the production process.
