Common methods of paint filtration and collection in spray booths

Views: 20     Author: Site Editor     Publish Time: 2023-08-03      Origin: Site


Paint booths are a common and critical work environment in many industries for coating products or surfaces.

During the painting process, the quality of the paint and the control of particulate matter are critical as they directly affect the appearance and quality of the coating.

This article will describe the common ways in which paint is filtered and collected in a paint spray booth to help you understand how to effectively control paint quality and minimize environmental contamination.


1. Paint filters

The paint strainer is one of the most basic and common forms of filtration in a spray booth. It is usually located at the inlet of the paint supply system and is used to capture particles and impurities to ensure the purity of the paint. The material of paint filter can be paper or cloth, and there are different filtration grades available. Choosing the right filter according to the need can effectively reduce the content of particles and ensure the quality of spraying liquid.

2. Cyclone separator

Cyclone separator is a common way to collect paint, especially suitable for the separation of larger particles. The working principle is to separate the particles from the paint by the centrifugal force generated by the air flow. In paint spray booths, cyclone separators are often used to recycle paint waste generated during the painting process to minimize waste and reduce costs.

3. Gravity Paint Filter Box

The gravity paint filter box is a common type of filtering equipment, usually used in manual spray gun stations in paint booths. It works by utilizing gravity to filter paint through the filter media. Paint is poured into the filter box from above, passes through the filter media, which filters out particles and impurities, and is then discharged from the bottom. The gravity paint filter box is easy to operate and is suitable for small scale spraying operations.

4. Cascade filtration system

The cascade filtration system is a highly efficient way of filtering and collecting paint. It consists of several filtration stages, each with a different filter medium, which are used to gradually reduce the particulate content of the paint. In a cascade filtration system, common filter media include coarse filter wool, fine filter wool and activated carbon. In this way, all kinds of impurities in the paint can be effectively removed to ensure the painting quality and smoothness of the coating.

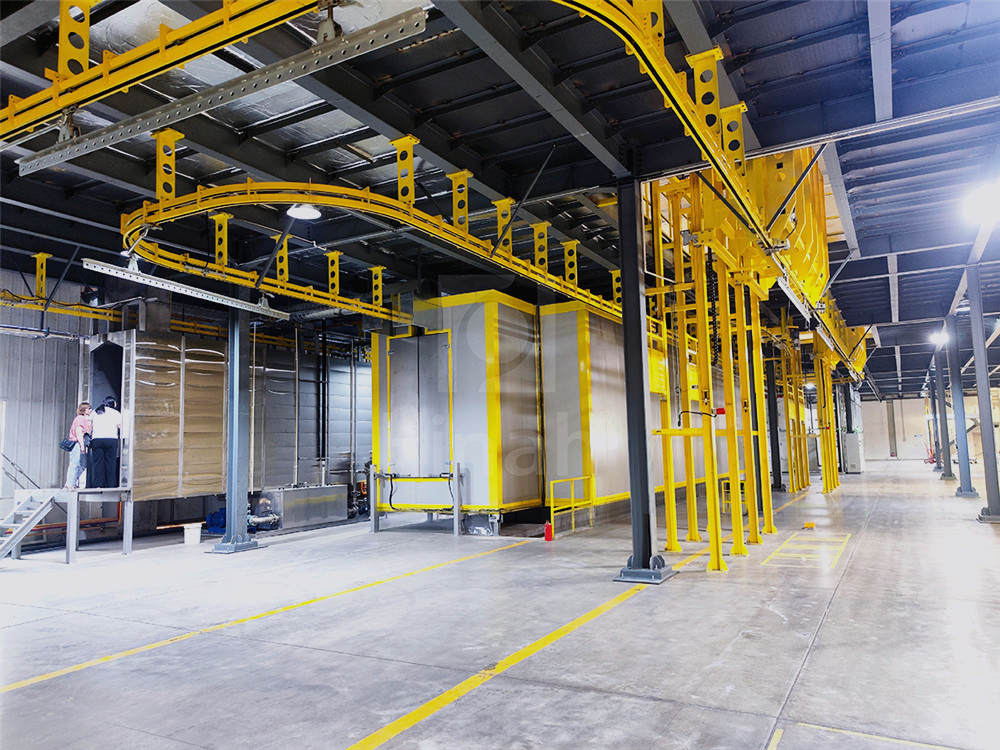

1200x900_画板 1 副本

5. Coating robots and automation systems

With the continuous advancement of technology, many spray booths have adopted painting robots and automation systems to carry out painting operations. Coating robots are usually equipped with advanced paint filtration and collection equipment, which can monitor and adjust the paint quality in real time to ensure the stability and consistency of the coating process. In addition, the use of painting robots can also reduce the environmental pollution and safety risks caused by human operation.

6. Waste recycling system

Waste recycling system is an important environmental protection measure in paint spraying room. The waste recycling system can effectively collect and treat the paint waste and solvent exhaust generated during the spraying process to reduce the negative impact on the environment. The recovered waste can be reused or disposed of correctly to reduce resource waste and environmental pollution.


In a paint spray booth, paint filtration and collection is an important part of ensuring painting quality and environmental protection. Through reasonable selection and use of filtering equipment, rational planning of painting process and adoption of advanced painting robots and automation systems, the quality of paint can be effectively controlled, the content of particles can be reduced, environmental pollution can be lowered and the health of personnel can be protected. At the same time, a scientific waste recycling system should be established to ensure that the waste materials generated in the painting process are properly treated and utilized to achieve sustainable development.
