How to design the oven in the powder coating production line

Views: 28     Author: Site Editor     Publish Time: 2023-08-25      Origin: Site


Powder coating is a common surface coating technology, widely used in various industrial fields.

The oven is a crucial part of the powder coating line, which is capable of curing the powder coating applied to the workpiece into a solid film.

However, ovens may face problems of high energy consumption, low thermal efficiency and slow temperature rise during use.

In order to solve these problems, we need to give full consideration to energy saving and improving thermal efficiency when designing ovens. In this paper, we will discuss in depth how to design the oven in the powder coating production line so as to achieve the goals of energy saving, improving thermal efficiency and heating speed.


I. Optimise thermal insulation materials and structural design

In the design process of the oven, it is very critical to reasonably select high-quality insulation materials and optimise the structural design.

The thermal conductivity of the insulation material should be as low as possible to reduce heat loss. At the same time, the structure of the oven should minimise the thermal bridging effect to avoid heat transfer from the inside of the oven to the outside environment. Optimisation of insulation materials and structural design can effectively reduce energy consumption, improve thermal efficiency, and accelerate the heating speed of the oven.

II. The use of efficient heating elements

The heating element is the core component of the oven, which directly affects the heating efficiency of the oven.

In the design of the oven, we can choose efficient heating elements, such as the use of infrared radiation heating technology, this technology can transfer heat directly to the surface of the workpiece, reduce heat loss and improve thermal efficiency. In addition, you can also consider the use of rapid heating elements, so that the oven can heat up faster and improve productivity.

III. Optimise the air circulation system

The air circulation system inside the oven is also vital for the improvement of thermal efficiency.

Optimise the air circulation system can make the hot air evenly distributed inside the oven, to ensure that the surface of the workpiece is evenly heated, reducing the temperature gradient. In the use of the oven, we can properly adjust the speed of the fan to ensure that the air flow is not too violent, in order to avoid energy waste and high energy consumption.

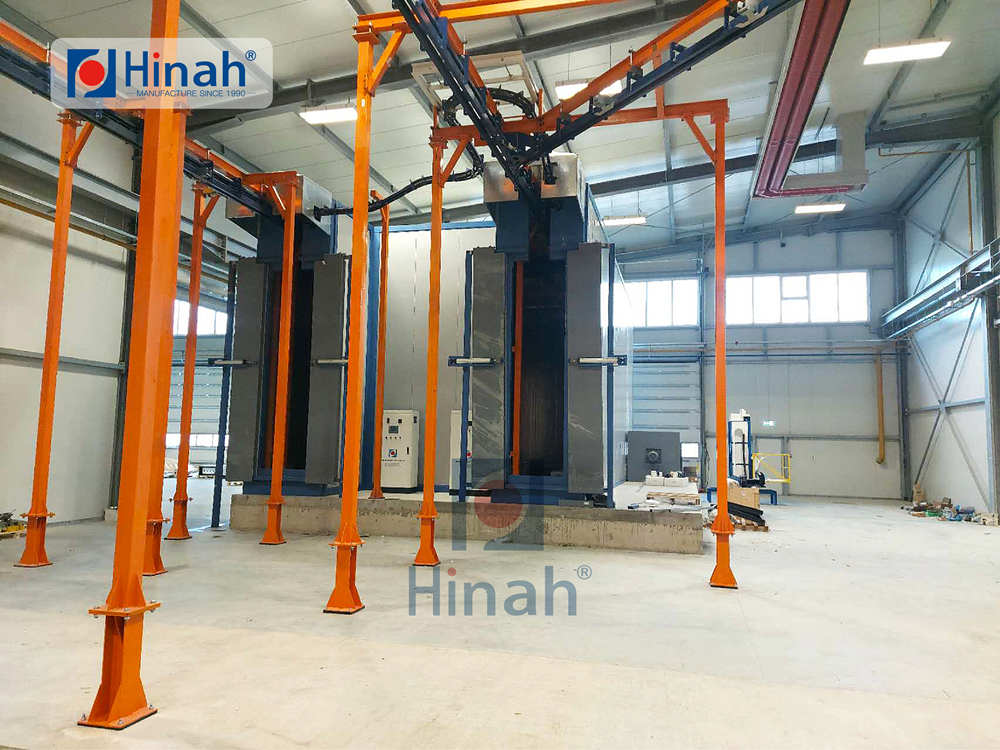

Influence of curing and drying on the effect of powder coating (1)

IV. The use of intelligent control system

Intelligent control system can automatically adjust the working status of the oven according to the actual situation, to achieve precise temperature control and energy consumption management. Through the use of temperature sensors and intelligent control algorithms, the oven can monitor the temperature changes in real time and make timely and appropriate adjustments. Intelligent control system can automatically optimise the working parameters of the oven according to different workpieces and production processes to improve thermal efficiency and energy saving.

V. Regular maintenance and cleaning

Regular maintenance and cleaning is the key to keep the oven in good working condition. Regular maintenance can be timely found and repair the faults inside the oven, to protect the normal operation of the oven. Regular cleaning can remove the dust and dirt inside the oven, keep the heating element and insulation materials clean and intact, reduce energy loss, improve thermal efficiency.


VI. Preheating and cooling time reasonable control

When using the oven, we should reasonably control the preheating and cooling time. Preheating time should be long enough to ensure that the entire oven to reach the set operating temperature. The cooling time can be appropriately shortened to reduce energy consumption and improve productivity. Proper control of preheating and cooling times can make the oven work more efficiently and reduce energy consumption.

VII. Conclusion:

By optimising insulation materials and structural design, using efficient heating elements, optimising the air circulation system, adopting an intelligent control system, regular maintenance and cleaning, as well as reasonable control of the preheating and cooling time, we can design a powder coating oven that is more energy-efficient, with improved thermal efficiency and speed of warming up. This not only helps to reduce production costs and improve production efficiency, but also helps to protect the environment and promote the sustainable development of enterprises. In practical application, we should use these methods flexibly according to the specific situation, and constantly optimise the oven design to achieve the goal of energy-saving and efficient production.
