automatic conveyor system features 2-Hanna

Views: 24     Author: Site Editor     Publish Time: 2019-09-25      Origin: Site

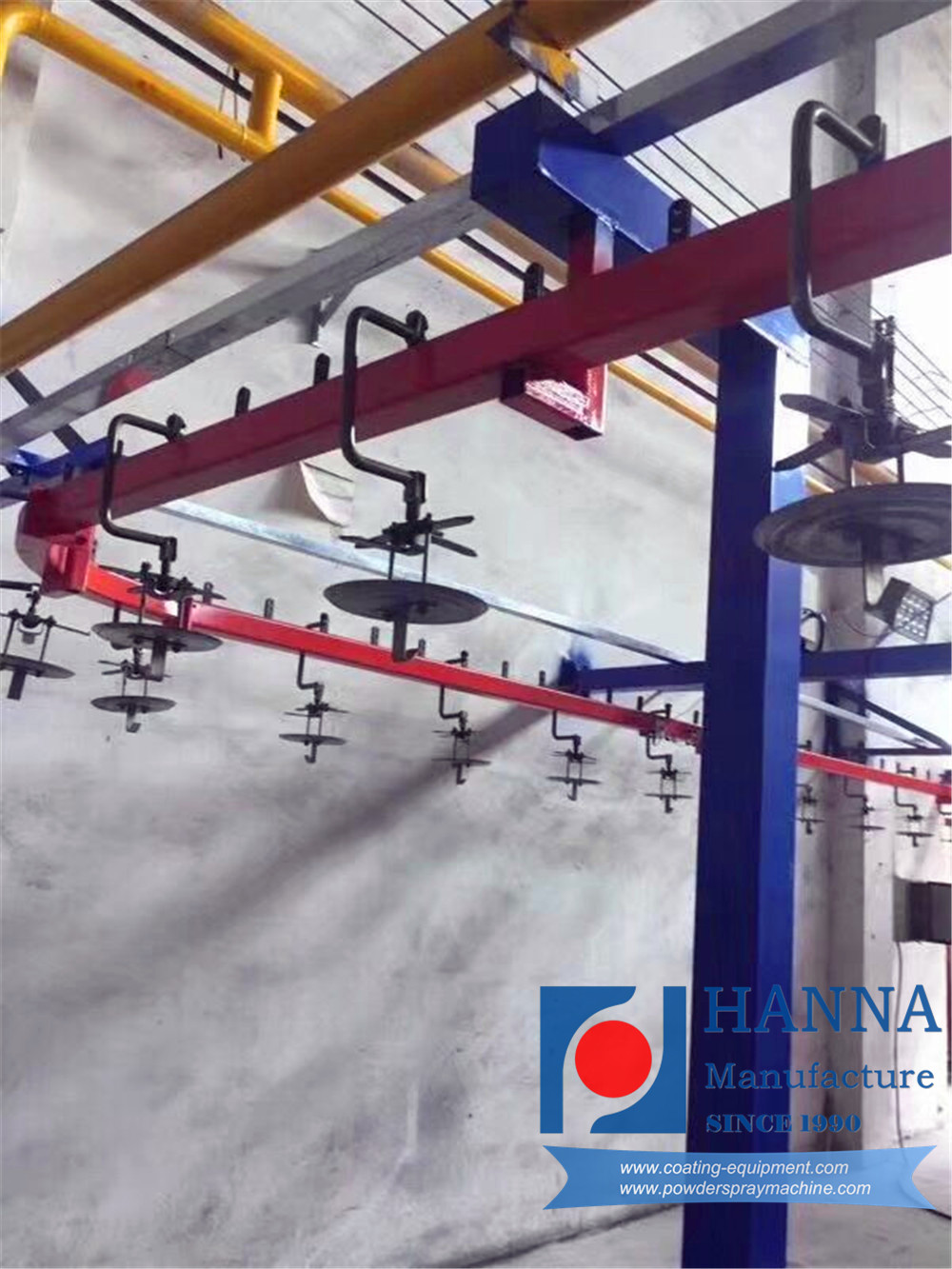

Chain conveyor system: The rail can be divided into 150 rails ≤ 30KG, 250 rails ≤ 50KG (single point lifting)

1,The drive unit in our high-end conveyor system uses a drive with a torque limiter. When the conveyor goes wrong, it can automatically stop. After the malfunction is removed, it can be restarted.

2,If the rail length is less than 180 meters, it will be driven by a single drive device. If the track is more than 180 meters, we recommend the double drive device. If the rail length exceeds 180 meters with a single drive device, then the track, chain, and tension parts will be problematic. We are at your point of view, providing you with the best design for saving time, labor, and long-term cost savings.


*Conveyor transport system

1) The conveyor chain is forced by driving unit to make it go along track. When it comes to different sections of track, it can automatically make corresponding changes on convey height and direction.  The driving units are equipped with safety pin protection for overloading.

2) Temperature expansion joint: when the convey track comes across drying furnace, the high temperature may cause thermal deformation on conveyor chain. Thus we design expansion joint at both ends of high-temperature zone for compensation.

3) The lubrication unit is helpful in drop oiling for axis pin, cross head and roller for regular maintenance.

4) Stepless regulation of convey speed for easy control and auto failure alarm for safety production.
